II Series Mini Multihead Weigher For Weighing Small Weight Granules
II series mini combination weigher is used to weigh small particles
such as Chinese herbal medicine pieces, coffee beans, tea leaves,
chocolate beans, raisins, etc. in the II series. The II series mini
multihead weigher adopt high-precision and high-standard special
sensors to make weighing more accurate. The small-weight weighing
design ensures even feeding and accurate weighing.
Features
1. Special sensors with high precision and high standard are used.
2. Program recovery function can reduce operation failures and
support multi-segment weight calibration
3. It can be automatically suspended in case of material shortage
to make the weighing more stable.
4. Linear amplitude can be adjusted independently in the running
5. 15 languages are available for global markets.
6.100 program capacity can meet various weighing requirements and a
user-friendly help menu contributes to easy operation.
Mechanical character
1. New machine design —II series, elegant appearance.
2. Easy moveable design for the in-feed funnel and discharge
funnel, which is more convenient to clean it.
3. Use weighing type for material detection to make accurate
control of feeding time & material thickness and ensure weighing
accuracy.
4. V feeder pan especially designed for small target weight to
ensure even feeding and weighing accuracy.
5. A new double parallel linear vibrator contributes to smaller
vibration, side-driven actuator makes the reading more accurate and
the weighing accuracy higher.
Technical specification
| Name | 1st G 10heads II series mini multihead weigher | 1st G 14heads series mini multihead weigher |
| Model | JW-A10 | JW-A14 |
| Identify Code | AS10-1-17 | AS14-1-17 |
| Weighing Range | 2-200g | 2-200g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 60P/M | 120P/M |
| Hopper Volume | 0.5L |
| Control Panel | 7”Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/800W/50/60Hz/8A | 220V/1100W/50/60Hz/10A |

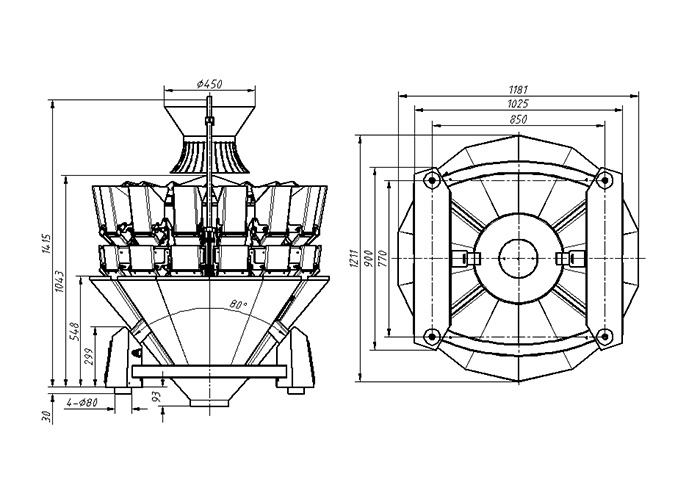

| Packing Dimension(mm) | 1160(L)x900(W)x900(H) | 1160(L)x900(W)x900(H) |
| Gross Weight | 210kg | 230kg |
Application
Suitable for weighing small weight granules such as Chinese
medicine tablets, tea, coffee beans, chocolate beans, currants, and
other snack food, hardware, plastic particles, and other
particulate materials quantitative weighing.
Advantages: The main advantage is reflected in weighing accuracy,
which indicates that the average error between actual weight and
displayed weight is smaller, it could help customers save
materials; The same interval time for hopper doors repeat open and
close make vibration torque consistency, which makes the mechanical
structure mutual friction loss is minimized and the machine can be
in long-term stable operation.
Accuracy: Taking into consideration that the mode of the main
vibrator and linear vibrator and vibration absorption ability of
the framework that has the effect to weigher accuracy, Kenwei
independent research and develop both standard and high amplitude
vibrators to meet the needs of different materials. Also control
the vibrating time and amplitude separately by control systems to
automatically adjust the linear vibrator amplitude, which makes the
material flow optimization; About the middle base of machine case,
we always use 2.5mm-3.0mm stainless steel sheet and strengthen the
internal structure by providing reinforcement to ensure the
machine's rigidity. Some models take the machine case and middle
base integrated, through a combination of AD converter module and
anti-jamming technology, which effectively reduce the vibrating
interference and ensure the accuracy of the machine running.
