14 Head Anchovy Fish Multihead Weigher Packaging Machine For
Weighing Stick Food

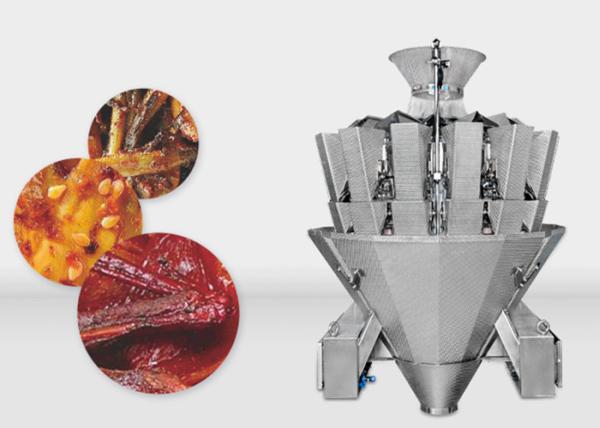

The 14-head anchovy fish weigher uses a single-door special hopper.
The anti-sticking design structure ensures the smooth flow of
materials and prevents the sticky hopper from guaranteeing the
accuracy of weighing. It is suitable for materials with high
viscosity, high oil content, and materials that are still stuck in
the hopper after the hopper is easy to stick, and materials that
will slide at a chute at an angle of 60°, such as spicy small fish,
sauce plate duck, and other casual snacks.
Features
- No product auto-pause function can improve weighing stability.
- 100 program capacity can meet various weighing requirements and a
user-friendly help menu contributes to easy operation.
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support
multi-segment weight calibration.
- Multiple languages are available for easy operation.
Mechanical character
- The enhanced electromagnetic induction vibrator accelerates the
fluidity of materials.
- Down-tilt special line vibrating plate to ensure smooth flow of
materials.
- The small-angle chute is conducive to the falling of materials and
effective control of sticky materials.
- Special hopper for a single door, anti-sticking design structure to
ensure the smooth flow of materials, prevent sticking hopper and
ensure weighing accuracy.
- The optional weighing detection device can be used to accurately
control the feeding time and the thickness of the material to
ensure the weighing accuracy.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-16 | A14-16 |
| Weighing Range | 10~1000g | 10~1000g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 40P/M | 60P/M |
| Hopper Volume | 1.6L |
| Control Panel | 7” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 110/220V/1000W/50/60Hz/8A | 110/220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1750(L)x1160(W)x1420(H) |
| Gross Weight | 380kg | 490kg |
Application
It is suitable for materials with high viscosity and with much oil,
it easy to stick on the hopper and material that can slide in the
60-angle discharged chute, such as spicy fish, sauce duck, etc.
