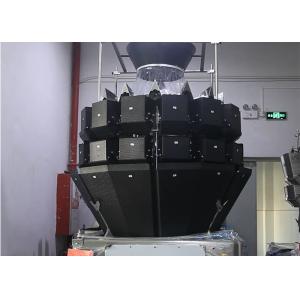

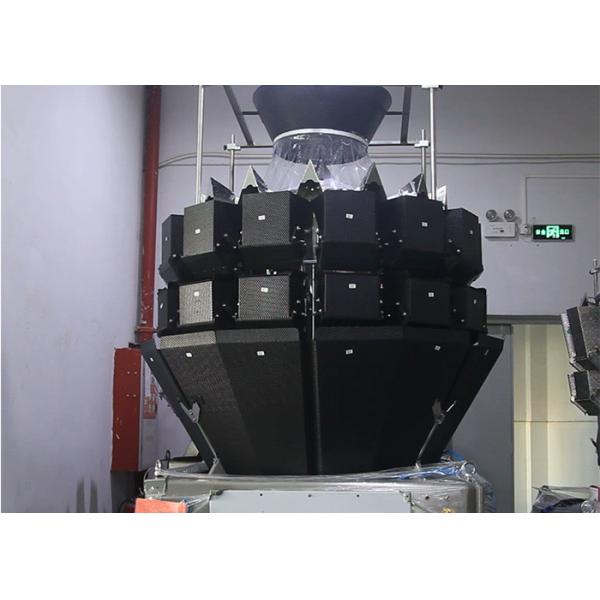

14 Head meat mulithead weigher For weighing raw chicken ,pork, beef
The 14-head screw feeding combination scale replaces the
traditional vibrating feeding scheme with a screw feeding scheme,
and is more suitable for viscous materials such as raw chicken,
pork, duck, beef, lamb and other super viscous meat. The meat
combination weigher adopts IP65 waterproof chassis, and the part
that contacts the material adopts template material, and the
cutting angle makes the material transportation smoother.Products
have passed CE certificate, PA / MC certificate, OIML certificate,
and GSG enterprise qualification certificate.
Features
1. High-precision, high-standard special load cell.
2. Many languages are available for the global market.
3. No product automatic pause function can improve weighing
stability.
4. Program recovery function can reduce operation failures and
support multi-segment weight calibration.
5. 100 program capacity can meet various weighing requirements, and
user-friendly help menu helps simplify operation.
Mechanical character
1. A unified design standard helps to better exchange spare parts.
2. The drying device is an optional part, which effectively
prevents the electronic components from being damaged due to
moisture.
3. Screw feeding instead of traditional vibrator feeding is more
suitable for viscous materials.
4. Stable actuator shell structure makes the hopper run more stable
and the reading accuracy is higher. The integrated chassis and seat
enhance the strength of the machine and make the hopper settling
time shorter.
5. IP65 waterproof casing, the material contact part and the
concave plate, the 60° discharge chute makes the material fall
smoothly.
Technical specification
| Model | JW-A14 |
| Identify Code | A14-2-3D |
| Weighing Range | 10-1500g |
| Accuracy | X(0.5) |
| Max Speed | 50P/M |
| Hopper Volume | 2.5L |
| Control Panel | 10.1” Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1750(L)x1130(w)x1450(H) |
| Gross Weight | 500kg |
Application
It's suitable for weighing the sticky material, such as chicken,
pork, duck, fish, beef, and so on.
Company profile
Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently
a large production base of multihead weighers. As a professional
manufacturer, we devote to R&D and manufacturing of multihead
weighers, linear weighers, check weighers, metal detectors with
high speed and high accuracy. We also provide customers with
complete automatic weighing and packaging systems to meet the
various customized requirements.
More than 10 years, we have been adhering to "stability is the key
to save" and "professional manufacturing, excellent quality,
integrity management" these concepts, and we will make effort to
combine weighing packaging technology with advanced automated
production systems together, thus create more stable and efficient
automatic weighing and packaging systems. Also, we make an effort
to promote industrial automation, production cost savings, improve
production efficiency, and make unremitting efforts to be an
innovative and respected global enterprise.
Specialized in the production of automatic weighing and packaging
machinery for 14 years, we devote ourselves to the complete
solution of automatic packaging. Now we become the professional
multihead weigher (linear weigher/check weigher/metal detector etc
) manufacturing enterprise with large production capability and
wide influence in the world. We have successively won the
“Guangdong Industry-University-Research Science and Technology
Project Award”, “high technology enterprise” , “Technology
Innovation Award” in Chinese food processing and packaging
industry, Ringier Multihead Combination Weighing Technology
Innovation Award, a number of “Utility Model Patent Certificate”
and many other honorary certificates.
If you got any problem when using the machine and the videos can
not help, our technician will have video chatting with you to fix
your problem
