    32 Head Seeds 50Hz 60g Automatic Multihead Weigher

    Ask Lasest Price
    Brand Name : Kenwei
    Model Number : JW-A32
    Certification : CE,SGS,OIML
    Price : USD4500-5400
    Payment Terms : L/C, T/T
    Supply Ability : 1000 set per/year
    Delivery Time : 20-45 working day
    • Product Details
    • Company Profile

    32 Head Seeds 50Hz 60g Automatic Multihead Weigher

    Automatic Weighing Multihead Weigher Packing Machine With 32 Head Hopper For,Seeds,Tea


    The 32-head hybrid combination weigher can mix up to 4 kinds of materials and is suitable for batching and processing granular products with good fluidity (such as nuts, beans, seeds, etc.). The 32-head hybrid multi-head weigher is a combination of mixed materials. The weight is composed of 32 hoppers. It uses a separate upper hopper for mixing various mixed formulation materials. We use "stable time development model" in program design and development.


    Features


    1.The weight of the mixture can be automatically compensated by the final material.

    2.Use high-precision, high-standard special sensors.
    3.Intelligent fault alarm prompts make maintenance more convenient.
    4.High-speed asynchronous discharge function effectively prevents material blockage.
    5.The Modbus industry standard communication protocol realizes the integration of the interface between the combined balance and the packaging machine.
    6.Can be used for 2-in-1, 3-in-1 and 4-in-1 mixed products.
    7.32 hopper combinations, higher weighing accuracy.
    8.A new highly integrated modular design using CAN bus technology.


    Mechanical character


    1.Another 24-head hybrid mini type and 32-head 4-head hybrid type are optional.

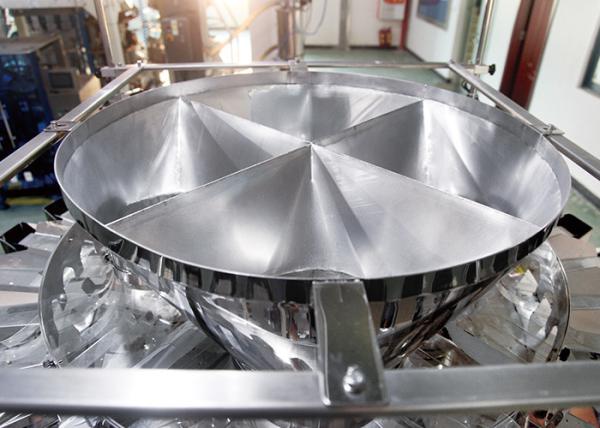

    2.The independent upper hopper is used for a variety of mixed formulation materials.
    3.The independent main vibrator is used to control the feeding thickness of different materials.
    4.Uniform design standards and mold manufacturing process make each part interchangeable.
    5.The one-piece shell and middle seat improve the rigidity and strength of the machine and make the weighing more accurate.

    6.The stable aluminum shell structure makes the hopper run more stable and the readings are more accurate.

    7.The integrated chassis and middle seat enhance the strength of the machine, thereby shortening the hopper stabilization time.


    32 Head Seeds 50Hz 60g Automatic Multihead Weigher


    Technical specification


    Model

    JW-A32JW-A32

    Identify Code

    A32-2-1A32-2-3

    Weighing Range

    5-240g10-2000g

    Accuracy

    X(0.5)X(0.5)

    Max Speed

    60P/M(Mix 4 Products)

    60X4P/M(Mix 4 Products)

    Hopper Volume

    0.5L1.6L

    Control Panel

    10.1” Touch Screen

    Options

    Dimple Plate/Timing Hopper/Printer/Reject Device

    Driving System

    Step Motor

    Power Requirement

    220V/2500W/50/60Hz/15A220V/2500W/50/60Hz/18A

    Packing Dimension(mm)

    2100(L)x1480(W)x1130(H)3000(L)x2100(W)x1400(H)

    Gross Weight

    600kg1300kg


    Application


    It is suitable for quantitative weighing of granular materials, tea, Chinese herbal medicine, seeds, beans, coffee beans, chocolate beans, nuts, MSG, chicken essence, etc.


    32 Head Seeds 50Hz 60g Automatic Multihead Weigher


    Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.


    Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has the effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.


    Individual needs: Kenwei develop a variety of weighers for different material, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. The above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.
