14 Head Combination Multihead Weighing Machine

    Buy cheap 14 Head Combination Multihead Weighing Machine from wholesalers

    Buy cheap 14 Head Combination Multihead Weighing Machine from wholesalers
    • Buy cheap 14 Head Combination Multihead Weighing Machine from wholesalers
    • Buy cheap 14 Head Combination Multihead Weighing Machine from wholesalers
    • Buy cheap 14 Head Combination Multihead Weighing Machine from wholesalers
    • Buy cheap 14 Head Combination Multihead Weighing Machine from wholesalers

    14 Head Combination Multihead Weighing Machine

    Ask Lasest Price
    Brand Name : Kenwei
    Model Number : JW-A14
    Certification : CE,SGS,OIML
    Price : USD4300-4700
    Payment Terms : L/C, T/T
    Supply Ability : 200 set per/year
    Delivery Time : 20-45 working day
    • Product Details
    • Company Profile

    14 Head Combination Multihead Weighing Machine

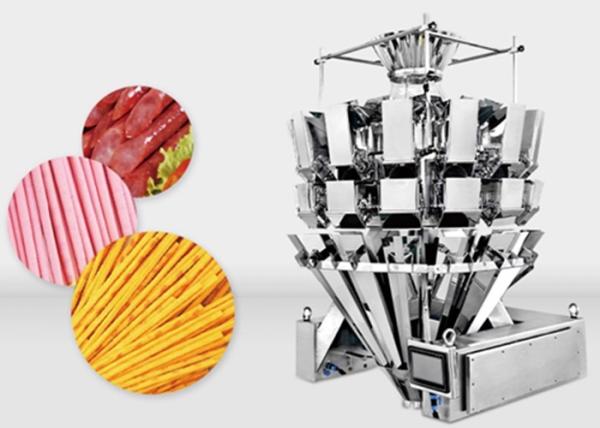

    14 Head Combination Weigher Machine With Hopper For Weighing Stick Shaped Products


    The combination weigher is specially designed for weighing sausage, finger cake, chopsticks and other slender materials. The maximum length is 200mm. The special hopper and independent long material chute keep the long material in the vertical state when entering the packing machine, which maximizes the integrity of the material.


    Features


    1.During operation, the amplitude of each line can be adjusted independently to make the material more uniform.
    2.No automatic suspension function, improve the stability and accuracy of weighing
    3.15 languages, easy to operate, suitable for the global market.
    4.100 program capacity, can meet all kinds of weighing requirements, touch screen humanized help menu, easy to operate.
    5.Adopt high precision and high standard special sensor.
    6.Factory parameter setting recovery function, support multi - section weight calibration.


    Mechanical character


    1. Special hopper design can keep the material in a vertical state.

    2. Special linear feeding tray to ensure the smooth feeding process.

    3. A special rotating top cone distributes the product evenly to each linear feeding plate.

    4. Independent discharging tank ensures that the material is discharged vertically into the packaging machine.

    5. Optional weighing material inspection, accurate control of feeding time, material thickness, to ensure the weighing accuracy.

    6. The whole shell of the casting aluminum thickener improves the strength of the machine and reduces the stability time of the sample.



    Technical specification


    Model

    JW-AS14

    JW-A10

    JW-A14

    JW-AM14

    Identify Code

    AS14-1-9

    A10-1-9

    A14-1-9

    AM14-1-9

    Weighing Range

    3-200g

    10-1000g

    10-1500g

    10-3000g

    Accuracy

    X(0.5)

    X(0.5)

    X(0.5)

    X(1)

    Max Speed

    60P/M

    30P/M

    60P/M

    60P/M

    Hopper Volume

    0.5L

    2.5L

    2.5L

    5L

    Control Panel

    7” Touch Screen

    Options

    Dimple Plate/Timing Hopper/Printer/Reject Device

    Driving System

    Step Motor

    Power Requirement

    220V/1100W/50/60Hz/10A

    220V/2000W/50/60Hz/12A

    220V/2000W/50/60Hz/12A

    220V/2000W/50/60Hz/12A

    Packing Dimension(mm)

    1190(L)x970(W)x950(H)

    1620(L)x1100(W)x1420(H)

    1750(L)x1130(W)x1420(H)

    2195(L)x1380(W)x2060(H)

    Gross Weight

    240kg

    380kg

    490kg

    750kg


    Application


    It is suitable for weighing stick-shaped products, such as sausage, salty sticks, chopsticks, pencil, etc. max 200mm length.


    Kenwei machinery advantages


    1.Stable precision mode: We use a "stable time development model" in program design and development. This development mode is the core element to ensure weigher be in long-time stable operation and make material saving maximize.

    2.Test: Simulate customer production materials, equipment operation, and other work environments,as much as possible to restore the customer's production status, access to get the real test data.

    3.Good service:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine;

    4. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.

    5. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.
