Fully Automatical Cup Packaging Machine With Multihead Weigher For
Packaging Snack Foods,Candy

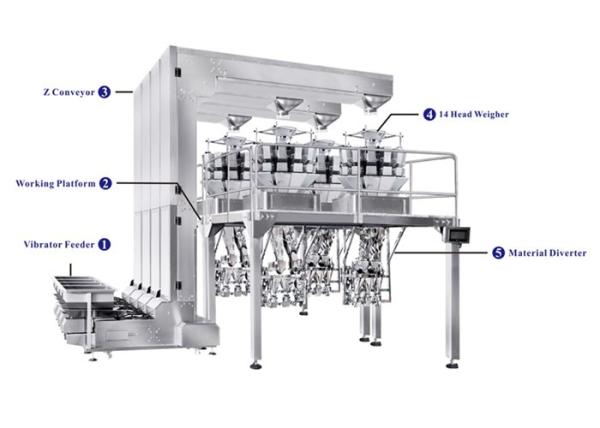

System including:Vibrator feeder,Z bucket conveyor, 14 head
Multihead weigher, Material diverter, Automatic cup dropping
device, cup model conveyor, capper, Finished product
transportation.
Application
It is suitable for weighing snack foods such as candy, melon seeds,
jelly, frozen, pistachio, peanuts, nuts, almonds, raisins,etc, and
is suitable for puffed food; hardware, plastic compounds and other
granular, flaky, strip, round and irregular shape material.
Packing Pouch
Features
1.Applicable to a wide range of materials.
2.Fully automatic finishing whole process of feeding, weighing,
filling bag, date printing,finished product output.
3.High accuracy, applicable to filling to two cups in one mould,
three cups in one mould, five cups in on mould, three cup in two
mould, four cups in two mould, or five cups in two mould.
Mechanical character
| Series model | Typical Machine | Speed | Max weight |
| One divides into two cup packaging and weighing system | One set of 14 head multihead weigher | 80p/min | 800g |
| One divides into three cup packaging and weighing system | One set of 14 head multihead weigher | 80p/min | 800g |
| One divides into four cup packaging and weighing system | Two sets of 14 head multihead weigher | 140p/min | 800g |
| One divides into five cup packaging and weighing system | Two sets of 14 head multihead weigher | 140p/min | 800g |
| One divides into six cup packaging and weighing system | Two sets of 14 head multihead weigher | 140p/min | 800g |
| One divides into eight cup packaging and weighing system | Four sets of 14 head multihead weigher | 280p/min | 800g |
| One divides into ten cup packaging and weighing system | Four sets of 14 head multihead weigher | 280p/min | 800g |
Details image
Company profile

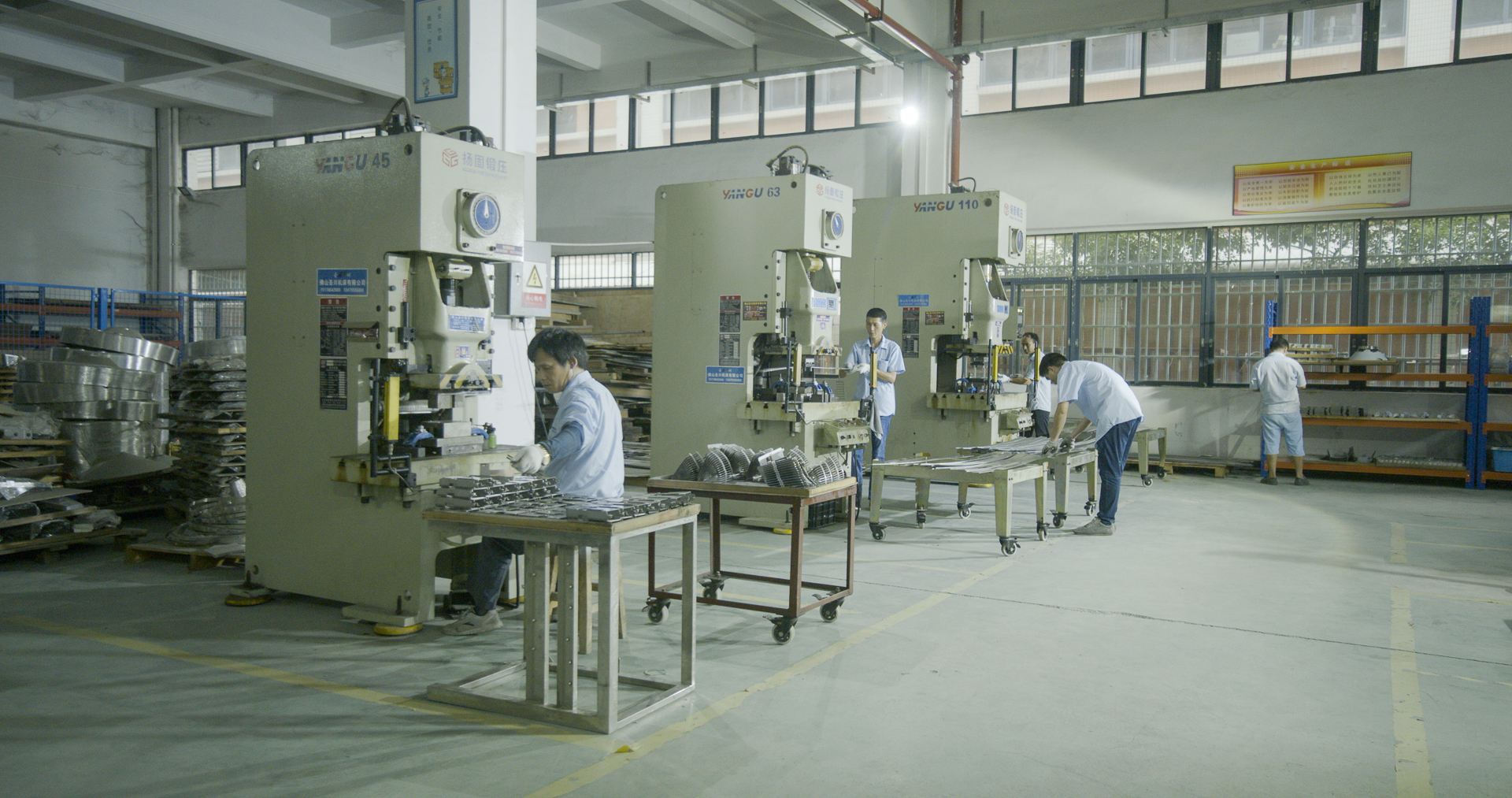

KENWEI, located in Hi-tech Industrial Zone, owns a modern workshop
over 21000m2 with an annual production capacity of more than 5,000
sets of multihead weigher. We have a high-quality team that
professional technicians more than 30% with comprehensive capacity
from design and development, manufacturing, marketing, installation
and commissioning, technical training, after-sales services, and
providing automatic weighing packaging system customization. With
the development of international markets, more and more marketing
and service networks are established all over the world. We won the
trust and good reputations for good and fast services, which also
help us to establish a good brand image in the packaging machinery
industry. We are now selling machines to more than 100 countries in
the world.
Kenwei independently researched and developed both standard and
high amplitude vibrators. The vibration time and vibration
amplitude of each vibrator can be automatically adjusted to
optimize the material flow. Multi-head weigher central chassis is
made from 2.5mm thickness stainless plate and strengthened
structurally with internal strengthening rib. The AD conversion
module combines technical modification with anti-interference
technology to effectively minimize various vibration interference
and ensure the accuracy of the whole machine.
According to the material characteristics and requirements of
different industries, we developed various machine types for
counting (small pouches into the big bag), noodles, frozen foods,
peppers, stick-shaped products, product -mixing, cheeses, salads
and so on. Products are free to choose two kinds of modes
combination of operation such as digital and modular, single outlet
and multiple discharge outlet, high precision, and high speed.
Also, we can develop software system independently to meet more
customized requirements for customers.
