    Compact Ip66 Waterproof Multihead Salad Weigher

    Ask Lasest Price
    Brand Name : Kenwei
    Model Number : JW-A10
    Certification : CE,SGS,OIML
    Price : USD4300-4700
    Payment Terms : L/C, T/T
    Supply Ability : 300 set per/year
    Delivery Time : 20-45 working day
    • Product Details
    • Company Profile

    Compact Ip66 Waterproof Multihead Salad Weigher

    Compact Ip66 Waterproof Multihead Salad Weigher


    Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world.


    Features

    1. Special load cell with high precision and high standard.

    2. The program recovery function can reduce operation failures and support multi-segment weight calibration.

    3. No product auto-pause function can improve weighing stability and accuracy.

    4. Linear amplitude can be adjusted independently.

    5. Many languages are available for global markets.

    6. 100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.


    Mechanical character


    1. Ip66 waterproof case and automatic drainage pipe are adopted.

    2. Adopt stainless steel to thicken the integral middle seat, which enhances the tightness.

    3. The parts of the vibrator adopt the compact waterproof rubber sleeve, which can be washed directly with the high-pressure water gun.

    4. Equipped with a drying dewatering device to effectively prevent moisture damage.

    5. Mold-making process and uniform design standards contribute to better interchangeability for spare parts.


    Technical specification


    ModelJW-A10JW-A14
    Identify CodeA10-1-19A14-1-19
    Weighing Range10-1000g10-1500g
    AccuracyX(0.5)X(0.5)
    Max Speed65P/M120P/M
    Hopper Volume1.6L/2.5L
    Control Panel7” Touch Screen
    OptionsDimple Plate/Timing Hopper/Printer/Reject Device
    Driving SystemStep Motor
    Power Requirement220V/1000W/50/60Hz/12A220V/1500W/50/60Hz/12A

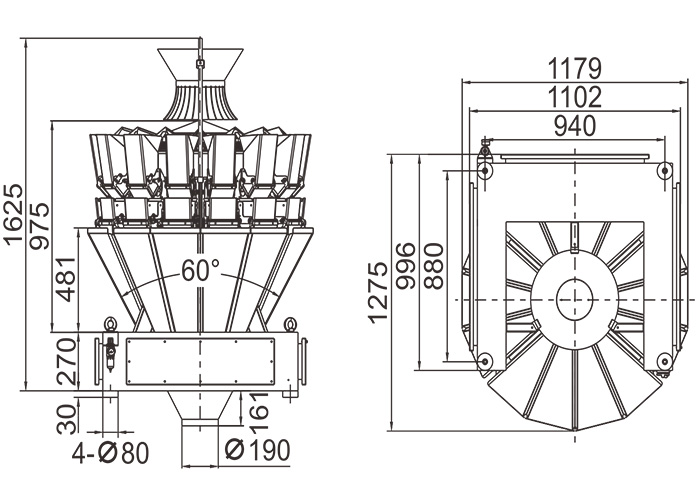

    Packing Dimension(mm)1620(L)x1100(W)x1110(H)1750(L)x1160(W)x1420(H)
    Gross Weight380kg490kg

    Application


    It is suitable for frozen salad, cooked food, and frozen food, etc.



    Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.


    Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
